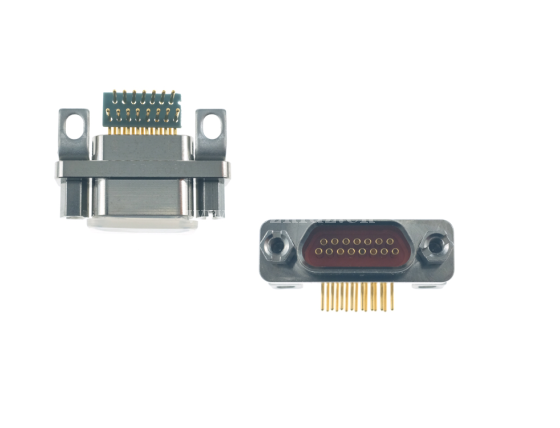

J30J-15ZKN-J 15 pin mini multipin rectangular connector
The contact spacing of these connectors with wire twisting pin and high density contacts arrangment are 1.27*2.54mm,1.6*2.54mm and 2.54*2.54mm.There are plastic shell and metal shell. They are equvialent to the MD series and MDM series of USA and have the features of small volume ,quickly mating and unmating function. They are wildely used for the electric circuit connection of military electronic equipment,espically in the area of small install space and light weight.
Conditions of use environment
Relative temperature: -55 ° C ~ +125° C
Relative Humidity: At +40°C, 95%
Technical Features ( Under Normal Condition )
| Rated Current | 3 A |
| Contact Resistance | Less than 10MΩ |
| Insulation Resistance | Morn than 5000 MΩ |
| Dielectric Withstand Voltage | 600V |
How to order Conditions of use environment
| Relative temperature | -55 ° C ~ +125° C |
| Relative Humidity | When 40 ± 2 ° C, up to90% ~ 95% |
| Operating Pressure | 101 ~ 0.8kpa |
| Sin Vibration | 101 ~ 2000HZ, acceleration 196m/s2 |
| Collision | Acceleration 392m/s2 |
| Impact | Acceleration 980.7m/s2 |
| Insulation resistance | Under normal atmospheric conditions not less than 3000M Ω Under the conditions of high temperature of not less than three M Ω |
| Resistance Temperature | 1500V exchange |
| Airtightness | General socket is not more than 6 × 10-2Pal / s Socket sintered glass not more than 1 × 10-5Pal / s |
| Life expectancy | Plug 500 |
| Implementing standards | Q/321283LSB04-2006 "Y50 series of circular connector |
Our products are widely used in aviation,aerospace,boat,telecommunication,railway,medical
appar- atus, car, oil survey and so on. Parts of them are sold abroad. Having excellent
characteristics such as small size,high density,suitable for any circumstance,leakage,proof,
nice shielding performance,easy to operate,high reliability and high contents of technological,
our products have received good remarks from our clients all over the world.
